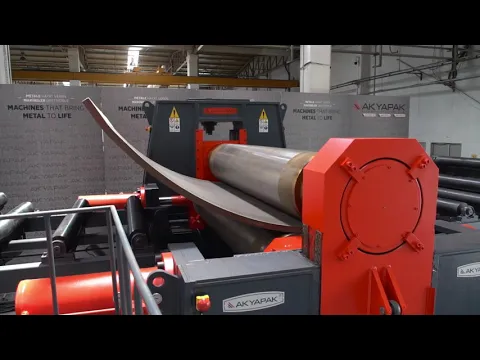

Variable Geometry Hydraulic Plate Bending Machine Akyapak AHV
Variable Geometry Hydraulic Plate Bending Machine Akyapak AHV
With variable geometry, the AHV series combines performance with flexibility in production. The three roles move independently of each other. Thanks to the vertical movement of the upper roller and the independent horizontal positioning of the side rollers, the machine is able to realize a very wide range of products.
Due to the asymmetric positioning of the rolls, we achieve precise rolling with minimised straight material ends, so-called “bars”, at maximum material thicknesses, which significantly influences the versatility of AHV in production.
- Working length: 3100 mm
- Thickness range 30÷260 mm
- Movement of the lower rollers horizontally
- hardened and ground rollers
- optional lateral and upper support
Schedule a meeting with a customer advisor.
Our experts will analyze your situation, answer all your questions, and prepare a personalized offer.
FAQ
What features distinguish the AKYAPAK Geometric hydraulic Plate Bending plate roller?
● The AHV series consists of modern, three-roll hydraulic plate rollers with an asymmetric roll configuration, allowing precise bending of sheet metal into both cylindrical and conical shapes. The hydraulic drive ensures high pressing force and accuracy, even when working with thick material.
Who is the AHV Geometric hydraulic Plate Bending designed for?
● The AHV roller is designed for production plants that require a reliable machine for intensive work with various materials. It is ideal for the machinery, metallurgy, shipbuilding industries, and for manufacturing steel structures and large components.
How does the bending mechanism work in the AHV series?
● In the AHV roller, two rolls are hydraulically driven and rotate synchronously. The top (pressing) roll is also hydraulically controlled, allowing precise adjustment of the pressing force. Side supports and edge prebending capabilities ensure accurate shaping without the need for material pre-preparation.
Does the AHV series support process automation?
● Yes, AHV machines can be equipped with NC or CNC control systems, enabling programmable bending cycles. They also allow saving settings and repeating production tasks. Automation significantly speeds up the process and minimizes operator errors.
What are the main advantages of investing in the AHV hydraulic plate roller?
● Purchasing an AHV roller ensures strength, high bending force, and versatility in processing sheets of various thicknesses and widths. With a hydraulic pressing system and robust construction, the machine offers long service life. It guarantees high precision and reliable performance even in continuous operation under demanding conditions.
