Laser cutting machine Baykal BLS fiber series
Laser cutting fiber Baykal Fiber – Polteknik thermal cutting machines.
Working area: 4000×2000, 6000×2000, inne wg indywidualnych wymagań
Resonator Power: 3 KW, 4 KW ,6 KW, 10 KW, 12 KW i 15 KW
Technical data:
Machine construction: Resonator fiber nLight, two shuttle table
Control unit: Beckhoff, 19’’ touch screen
Drives and controllers PLC: Beckhoff
Axis operating range X/Y/Z: zależny od wymiaru stołu, oś Z 100 mm
Simultaneous speed X,Y axis: 150 m/min
Maximum working speed: 45 m/min
Possitioning accuracy: 0,08 mm
Repeatability of positioning: 0,03mm
Cutting Head: Precitec, Auto Focus, lens 5’’ oraz 7,5’’
Technology characteristics:
- highest efficiency in processing thin materials
- low operating costs
- maximum working comfort and safety for the operator
- advanced touchscreen control, multitouch technology
- simple operation
- advanced external software Lantek Expert
- production based on components from renowned German and American suppliers
- possibility to adapt the machine to process large-size sheets, X up to 18 000 mm
The maximum thickness of the cut material depends on the power of the resonator:
The thickness range and quality of the cut depends on the quality of the input material and the specific shape of the part to be cut. The greatest efficiency is achieved when cutting thin materials in the 0.5-5 mm range.

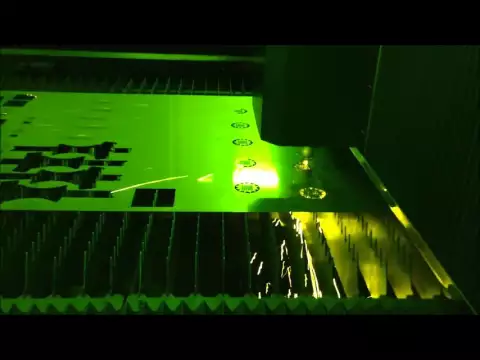

Video:
